DOSEEM SCBA DS-RHZKF9 (GB)
DS-RHZKF9(GB) SCBA comprises full face mask, HUD, backplane transmitter, demand valve, air cylinder and valve, pressure reducer unit, backplate.
For industry.
US 30-day money-back guarantee
物流时间表
售后
DOSEEM DS-RHZKF9 Self-contained Breathing Apparatus
Article number: 01207
Model: DS-RHZKF9
Standard
GB/16556-2007
Fulfill the standard
EN 137:2006; GA124-2013; NFPA 1981:2003
Introduction:
DOSEEM self-contained breathing apparatus is widely used in fire control, chemical, ship, oil, smelting, electric power, warehouse, laboratory, mine and other key departments for fire fighting, fire, gas, steam, and oxygen. It is a safe and effective for fire extinguishing and rescue. An ideal personal breathing protection device.
DOSEEM DS-RHZKF9 SCBA comprises a full facemask, a HUD, a backplane transmitter, a demand valve, an air cylinder, a self-locking cylinder valve, a pressure reducing valve, a high pressure tube, a medium pressure tube, a backplate, a warning whistle and a mechanical pressure gauge.
1. Full facemask & HUD
2. Demand valve
3. Self-locking cylinder Valve
4. Pressure reducing valve
5. Fast connector
6. Backplate
7. Backplane transmitter
8. Air cylinder
9. Medium pressure tube
10. High pressure tube
11. Alarm whistle
12. Mechanical pressure gauge

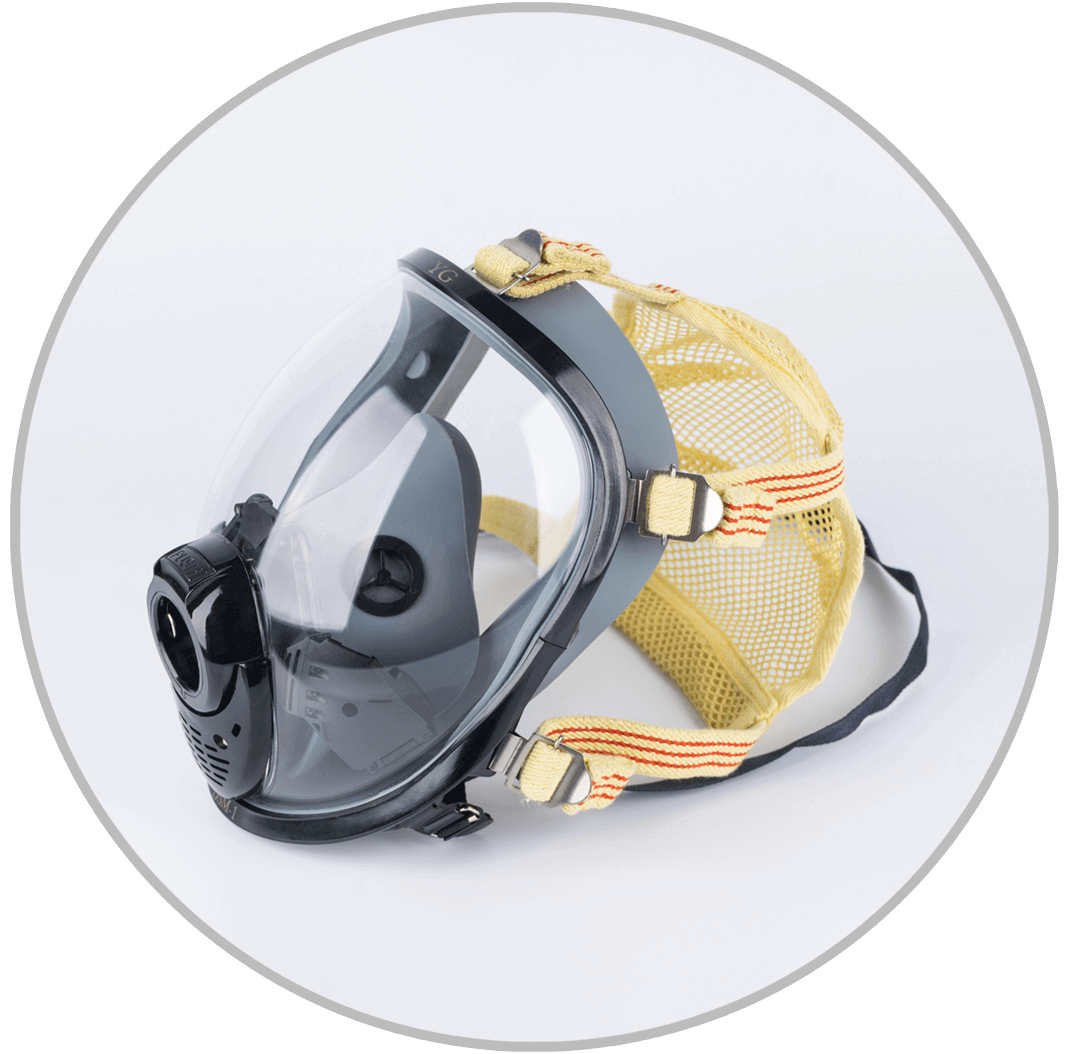

1. Full facemask
The full-face mask is a positive-pressure mask that adopts a single-eye window and a double-layer annular seal, and has the characteristics of wide vision and good transparency. The main frame of the face mask is made of silicone rubber material and has a small mouth nasal mask which is attached to the nose and mouth. It can enhance the full-face mask effective breathing space and reduce respiratory resistance. The face mask is made of polycarbonate, which is always clear, bright and fog-free during use. The head cover is connected with the fast clip with the tightening belt, and the tightening belt can be tightened to make the face mask double seal ring close to the wearer's face so as to ensure the safety of the user's breathing.
More & Tech Datas

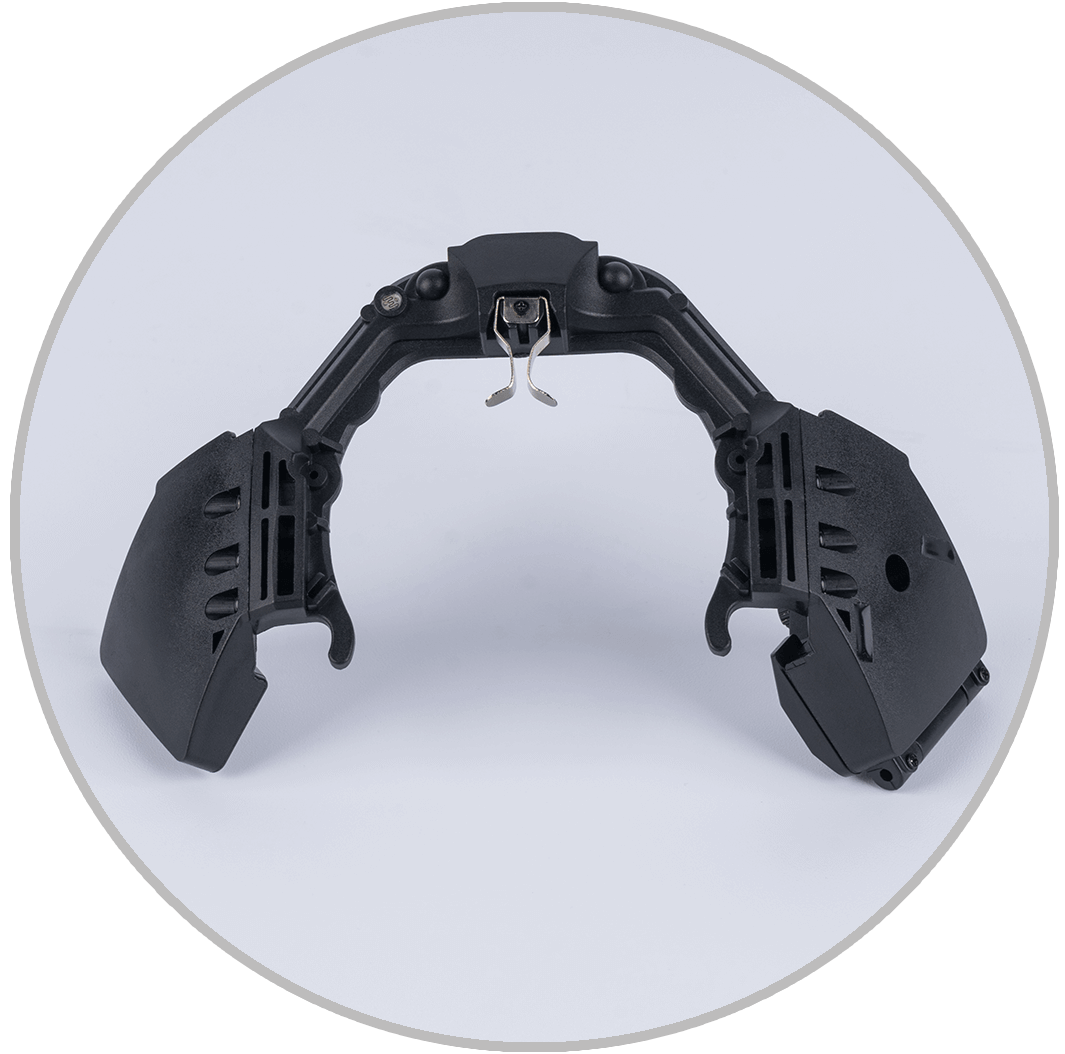

Pressure head-up display device
HUD is mounted on the double current side of the mask, and the color change of the air pressure indicator light can be seen, prompting the use of the gas cylinder. Green light: cylinder pressure above 10MPa; yellow light: cylinder pressure between 10~6MPa; red light: cylinder pressure below 6MPa.
More & Tech Datas

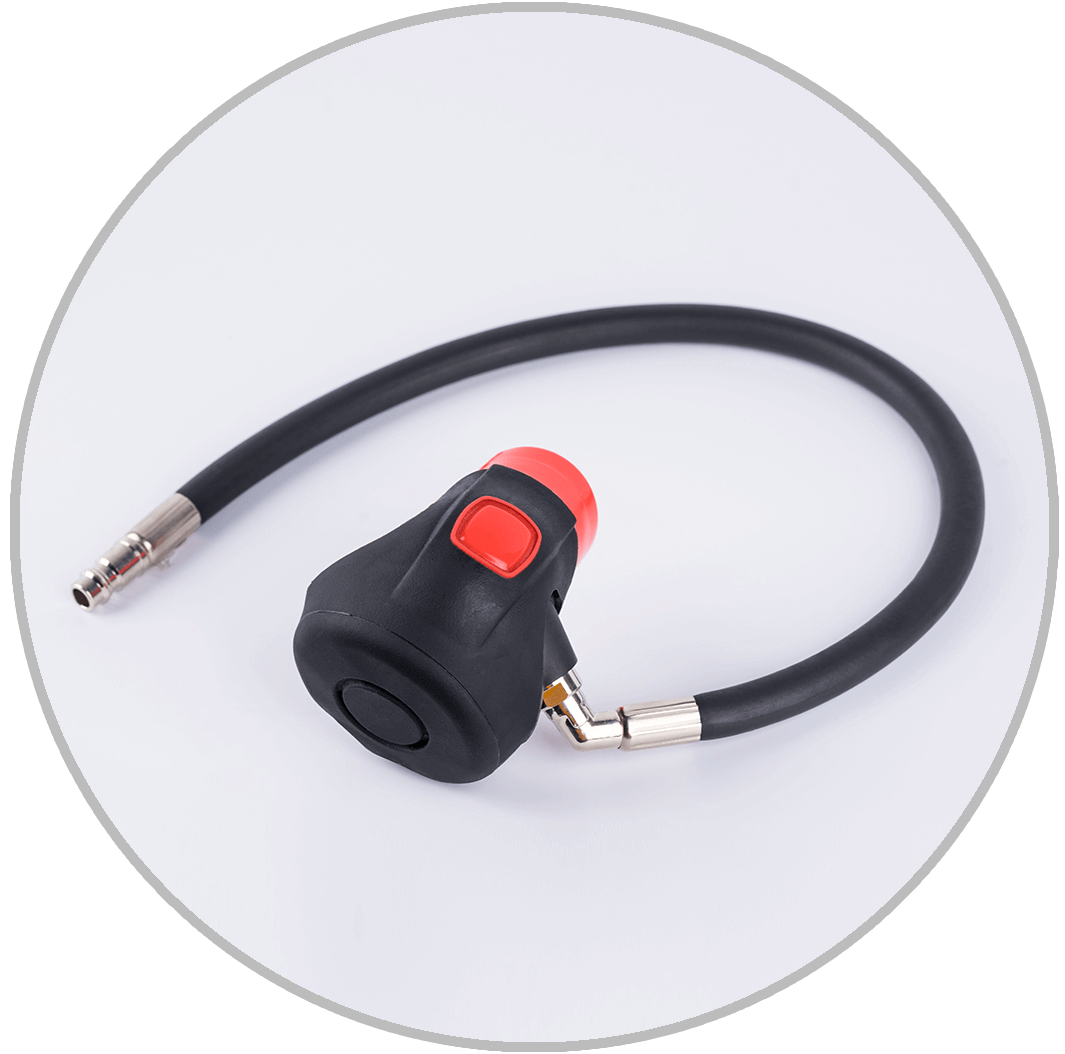

2. Demand valve
This demand valve is a plug-in type positive pressure demand valve. The air supply flow is greater than 300L/minute. Simply insert the mask during use and take a deep breath to open the demand valve for air. Operation method: Place the demand valve inlet Insert the mask directly, and hear a "beep" sound, indicating a smooth insertion. Take a deep breath and the demand valve will automatically open the air.
The bypass valve is a method for the use of an emergency valve designed on the demand valve: when the demand valve fails, the bypass valve button is directly pressed, and the demand valve can supply the mask directly to the air for the operator to evacuate and use.
More & Tech Datas

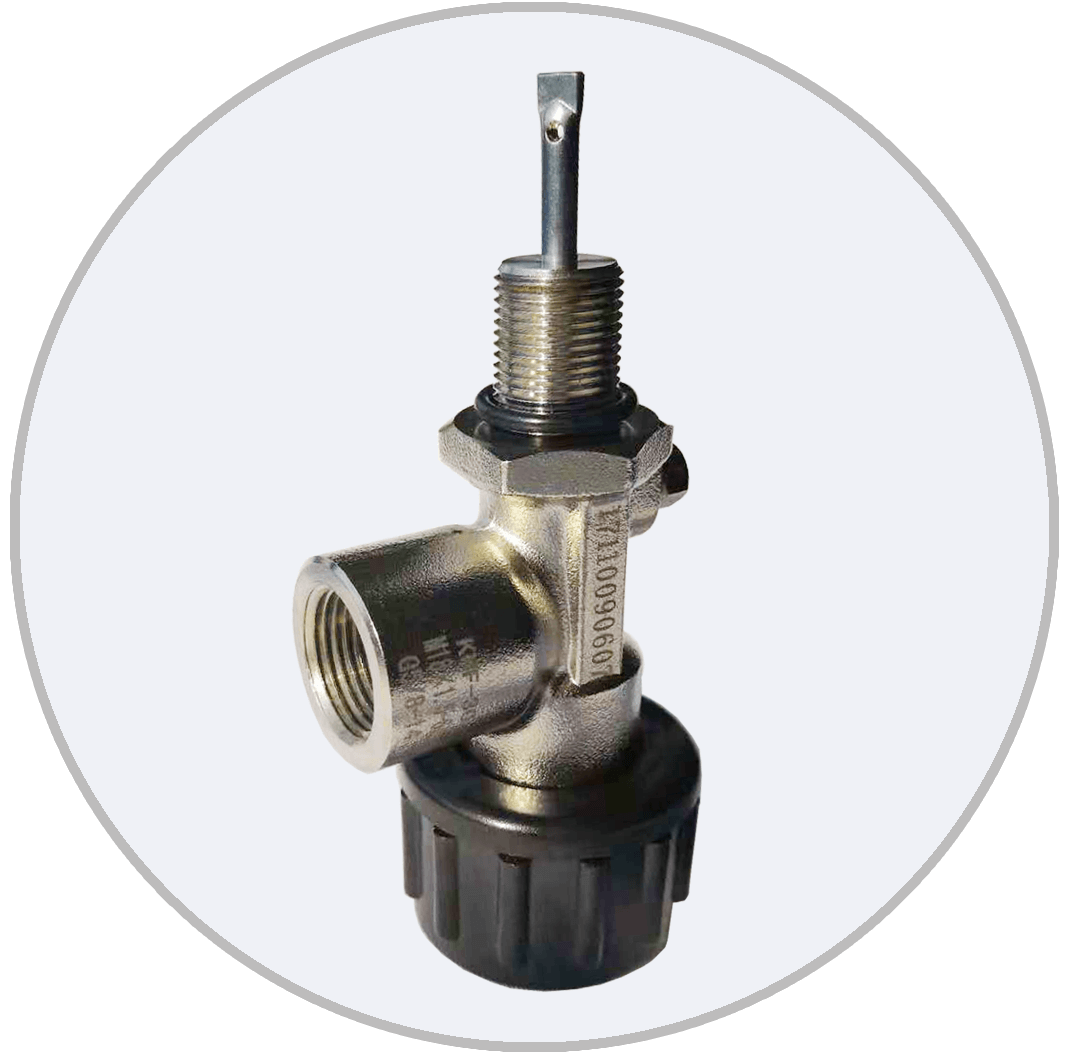

3. Self-locking cylinder valve
Air cylinder valve is an important part of the cylinder switch gas source. Its structure is a female threaded bottle valve. The thread is divided into two types: imperial G5/8 and metric M18*1.5. They are matched with the external thread reducer. The cylinder valve of the internal thread structure is equipped with a high-pressure safety diaphragm. When the gas pressure in the cylinder exceeds 38MPa-45MPa, the safety diaphragm will burst and the gas will be rapidly relieved.
More & Tech Datas

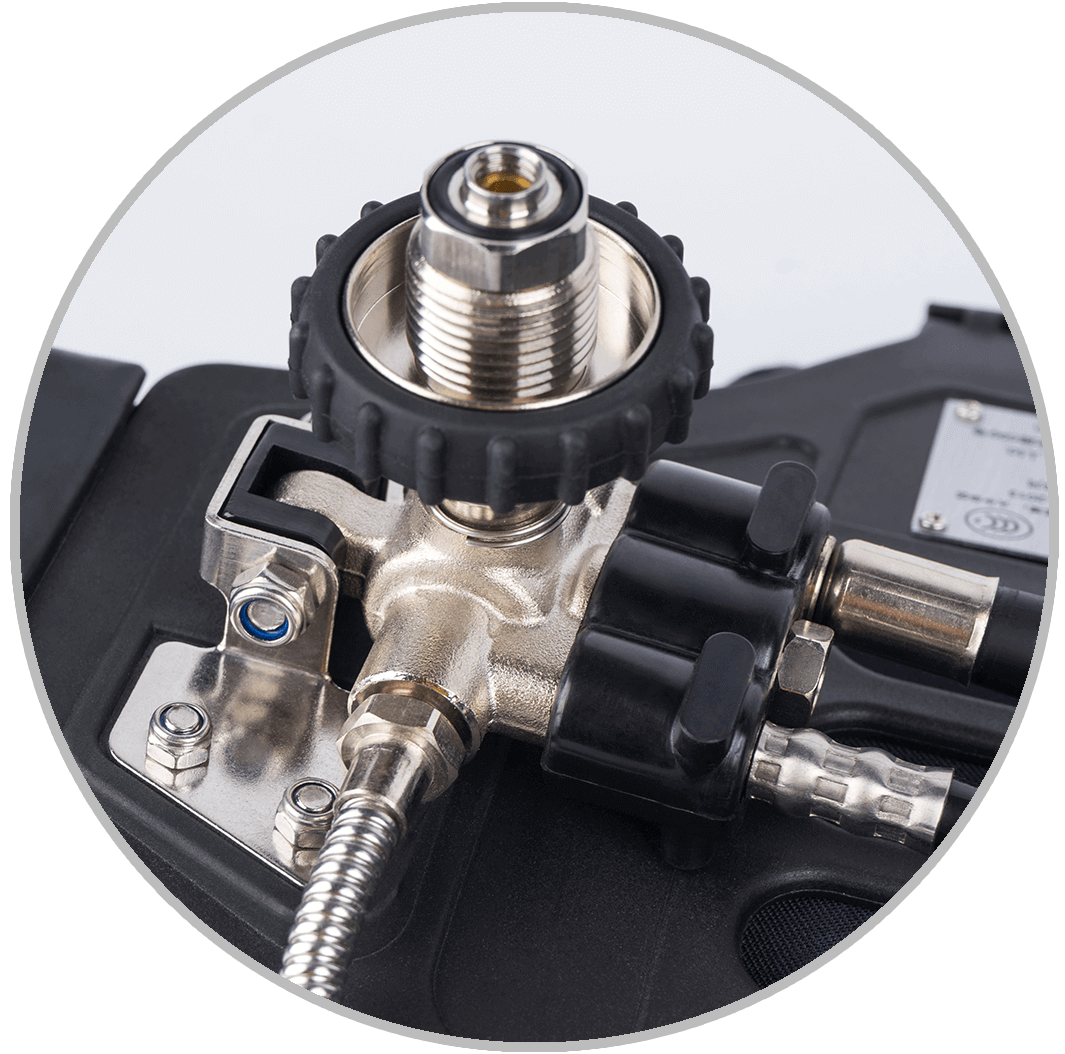

4. Pressure reducing valve
The pressure reducing valve is a device that depressurizes the high-pressure gas to a constant output pressure of 0.8±0.2 MPa and supplies the gas to the demand valve. The pressure relief valve is mounted on the backrest and is linked to the cylinder valve by the connection nut hand-wheel. The gas source output is divided into two parts: high pressure and low pressure. The high-pressure gas source gas is sent to the high pressure meter and residual gas alarm through the high pressure tube. After decompression, the low-pressure gas source is sent to the demand valve through the medium pressure tube, and the low pressure end is provided with a safety valve in the crucible cavity. Pressure relief valve and medium pressure tube, high pressure tube connection are plug-in type, the tube can rotate freely.
More & Tech Datas

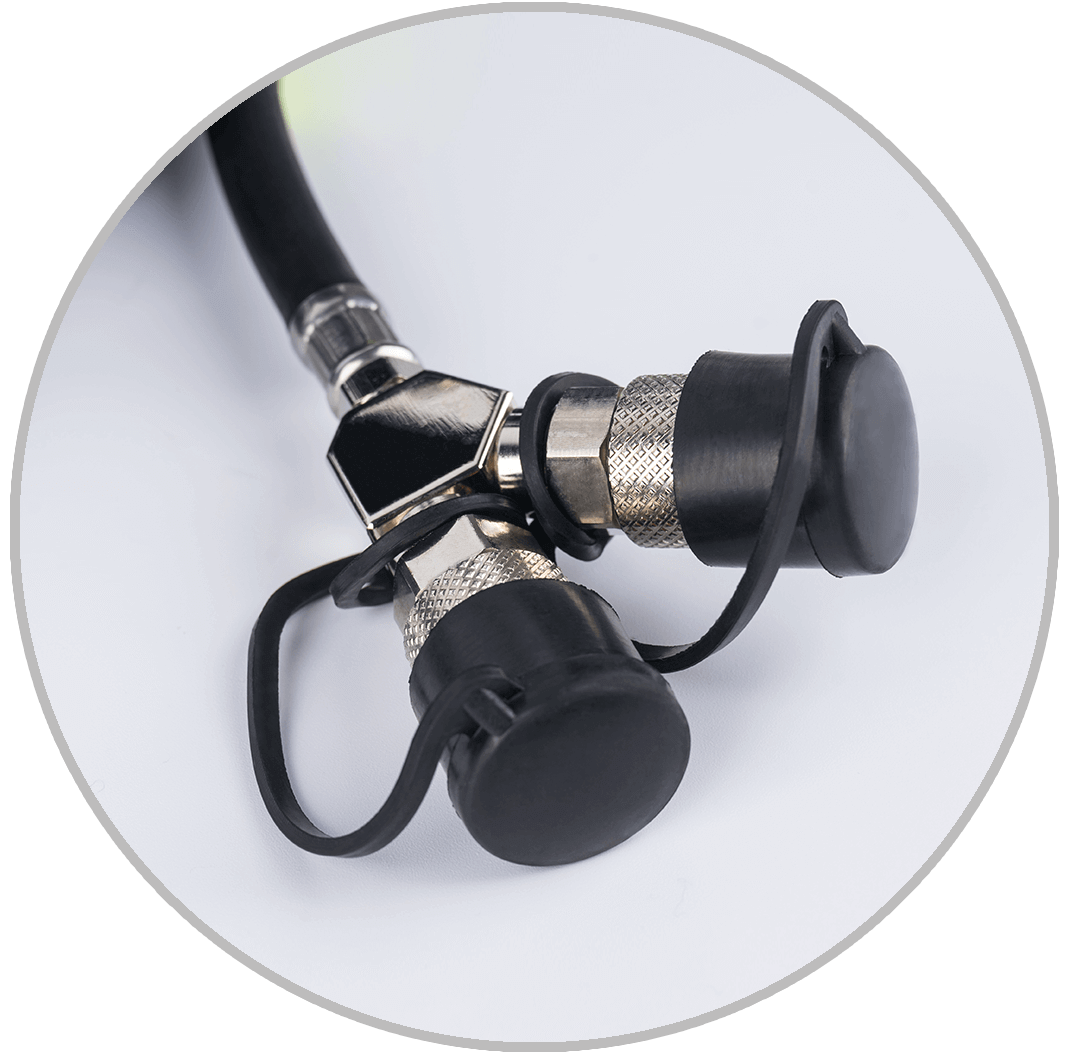

5. Fast connector
High safety standards
Imported stainless steel, no rust, corrosion resistance, no deformation resistance
Fast locking, convenient loading and unloading
Strong air tightness
Use safety

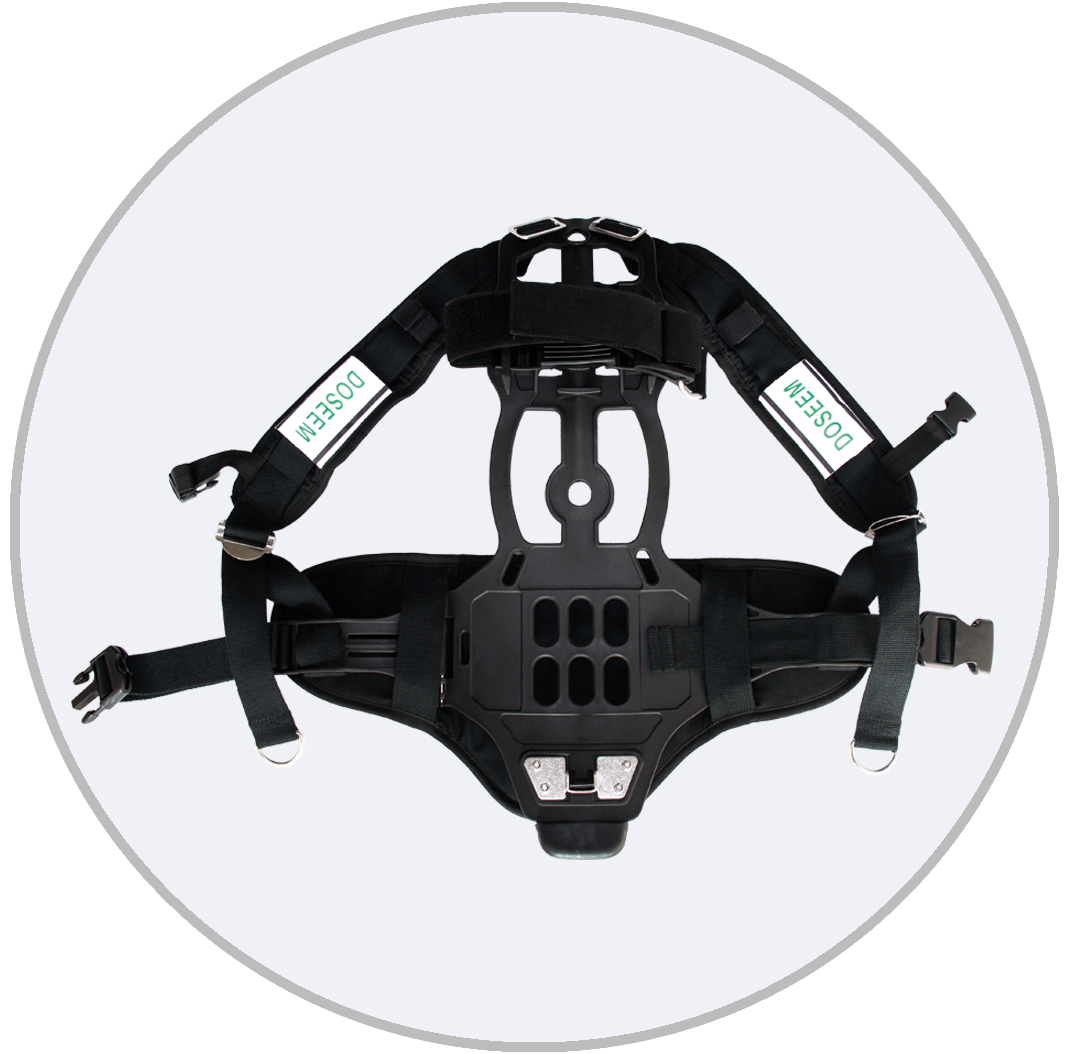

6. Backplate
The role of backplate is to support the fixed cylinder and pressure reducer. The weight on the backplate is evenly distributed on the shoulders by the straps. The strap consists of a shoulder strap and a waistband. Both can be quickly adjusted in length so that the backrest rests on the back and buttocks of the human body. The gas cylinder is fixed on the backrest by a quick fixing device, and the diameter of the cylinder can be adjusted to fix the length of the cylinder.
More & Tech Datas

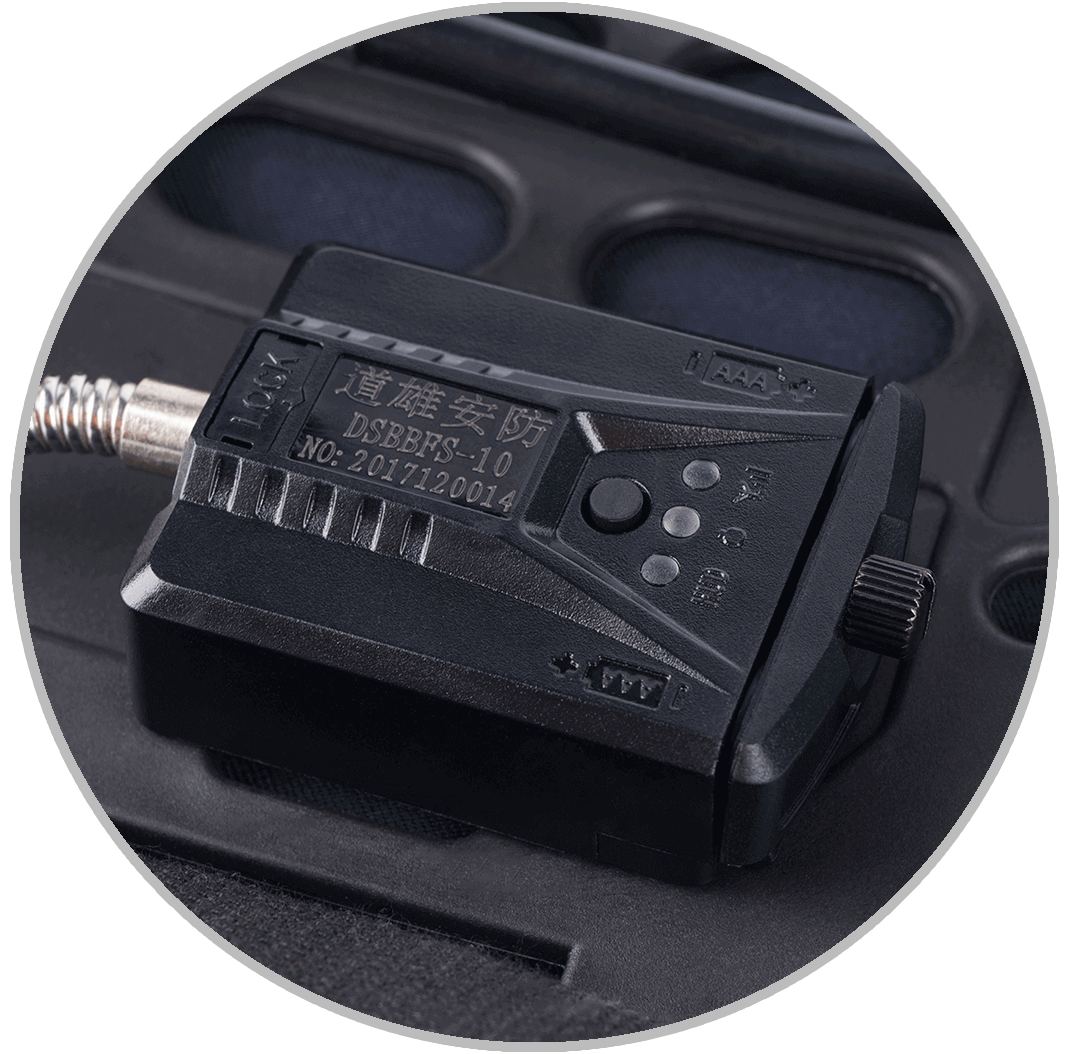

7. Backplane transmitter
The backplane transmitter can transmit the empty exhalation bottle pressure and the remaining amount of available time data to the pressure head-up device (HUD) via bluetooth for light prompting, which effectively avoids delaying the rescue time due to looking down at the pressure gauge and affecting attention.
The backplane transmitter maintains continuous output and reception of Bluetooth signals with and pressure head-up display devices.
More & Tech Datas
8. Air cylinder
The gas cylinder is a high-pressure vessel for storing compressed air for human respiratory use. The rated storage pressure is 30 MPa. This gas cylinder is an international high-pressure cylinder.
The process of carbon fiber composite cylinders: In the aluminum alloy liner, high-strength fibers such as carbon fiber and glass fiber are wound together with polymer materials.
Features: light weight, high strength, corrosion resistance, long service life.
More & Tech Datas
9. Medium pressure tube
The medium pressure tube is an air output flexible conduit composed of a rubber tube and a quick connector. One end is connected to an demand valve, and the other end is connected to a pressure reducer. The connection method is a card-type connection, which can be quickly loaded and unloaded, and can also be freely rotated in the same plane.
10. High pressure tube
The high-pressure tube is a pressure-resistant rubber tube, and it is responsible for delivering the high-pressure gas source to the high pressure meter and the residual gas alarm system. The combination of a high-voltage gauge and a residual alarm can both indicate the air supply pressure of the cylinder and give an audible alarm when the cylinder reaches the design approval pressure.
11. Alarm whistle
High pressure tube design combined with front alarm system, when the pressure in the bottle is less than 5±0.5MPa, it will automatically alarm, the alarm decibel is not less than 90db, and the alarm can be heard clearly in relatively noisy environment.
More & Tech Datas

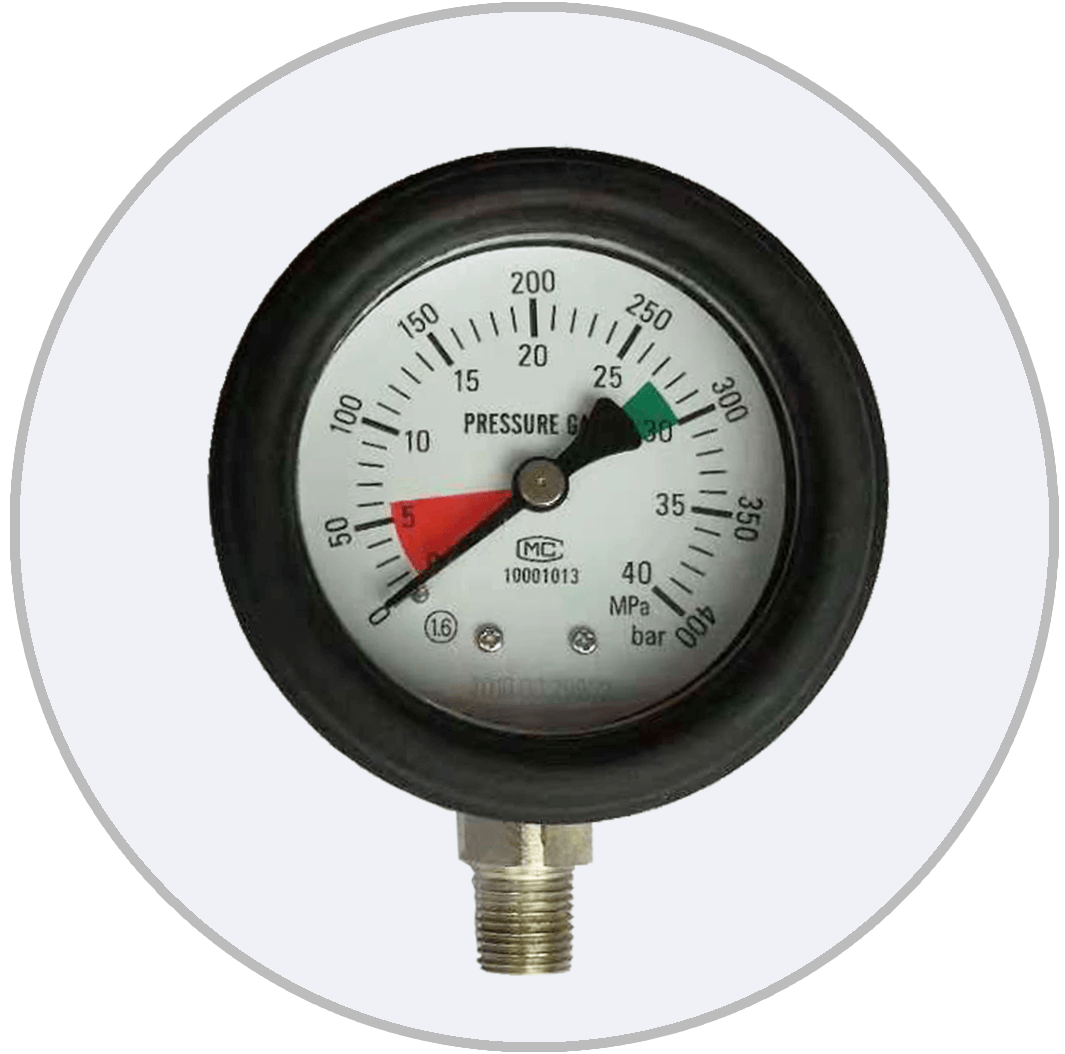

12. Pressure gauge
The combination of a high-voltage gauge and a residual alarm can both indicate the air supply pressure of the cylinder and give an audible alarm when the cylinder reaches the design approval pressure. The gauge range is 0-40MPa, the working pressure of the cylinder is 27-30MPa and the alarm pressure 5-6MPa is marked with green and red areas, respectively. When the pressure of the cylinder drops to 5-6MPa, the residual gas alarm will emit a continuous sound of 90dB to remind the user that the gas source will be used up and it is necessary to evacuate the site as soon as possible. For a cylinder with a volume of more than 5L, the gas source for the cylinder can be used by the wearer for 5-8 minutes.
More & Tech Datas
DOSEEM DS-RHZKF9 Advantages:
Optimized design, easy to use
DOSEEM DS-RHZKF9 self-contained breathing apparatus is one of the lightest breathing apparatus in the world. Innovatively developed an ergonomic backsheet with outstanding resistance to heat radiation, abrasion, tear and chemical resistance. Even in the harsh environment, DOSEEM DS-RHZKF9 respirator is very comfortable to wear and stable. DOSEEM DS-RHZKF9 passed the EN137 1000℃ high temperature flame test, which has excellent anti-wear and anti-heat radiation characteristics.
Easy maintenance
During service and maintenance, in order to minimize downtime and minimize costs, DOSEEM DS-RHZKF9 incorporates a number of unique designs, all of which can be easily removed or reconnected from the backplane using simple tools. The strap is attached to the backing plate by a single adjustment of the innovative design. The snap connection of the primary pressure relief valve allows the pneumatic section to be quickly installed or removed from the respirator. The tubing can be quickly removed and cleaned from the backing plate.
Enhanced backpack system
DOSEEM DS-RHZKF9 integrates a strap that can be precisely attached to the backplate. Advanced extruded waterproof EVA harness material is protected by a CR rubber edge seal that resists tearing and wear. The wear-resistant and flame-retardant FR-TPE belt ensures a tight fit on the user's body even during large movements. The refined stainless steel metal lock makes the DS-RHZKF9 quality more convenient and easy to use.
Pressure head-up display device
It is convenient for operation personnel to understand the pressure inside cylinder and avoid frequent checking of the pressure gauge. DOSEEM pressure head-up device consists of a backplane transmitter and a HUD. It uses a special protocol from DOSEEM to ensure the accuracy of data transmission and the uniqueness of pairing.
Pipeline integration, safe and reliable
In order to reduce the danger of being hooked and avoid physical damage, pressure tube and the air supply tube are integrated in the backplane clamp of DOSEEM DS-RHZKF9 backboard, which not only prevents thermal radiation impact, but also greatly enhances the safety of the enclosed space environment entering and working.
Other advantages:
◇ Anti poison gas ◇ Ergonomics
◇ Smoke prevention ◇ Thermal radiation
◇ Dust prevention ◇ Wear resistance
◇ Isolation oxygen ◇ Chemical resistance
Technical parameter
Machine parameters
Model | DS-RHZKF9 | Expiratory resistance (25 times/min) | ≤700Pa |
Capacity | 9L | Expiratory resistance (40 times/min) | ≤1000Pa |
Storage capacity | 2700L | Operating temperature | -30~60℃ |
Maximum air flow | ≥1000L/min | The whole weight | 12.3kg |
Working pressure | ≤30MPa | Alarm intensity | ≥90db |
Alarm pressure | 5.5±0.5MPa | Light work usage time | 95min |
Static pressure in a mask cavity | ≤500Pa | Moderate work usage time | 60min |
Suction resistance | ≤500Pa | Heavy work usage time | 40min |
HUD parameters
Product name | Pressure head-up display device |
Model | DSHUD-10 (Receiving end) |
Explosion-proof grade | Ex ia IIC T4 Ga |
Enclosure protection level | IP67 |
Operating temperature | -30℃~60℃ |
Weight | 40g |
Theoretical standby time | ＞1 year |
Continuous working time | > 200h |
Power supply battery | 1 section 3.0V CR2 lithium battery |
| Working time at low voltage | > 2h |

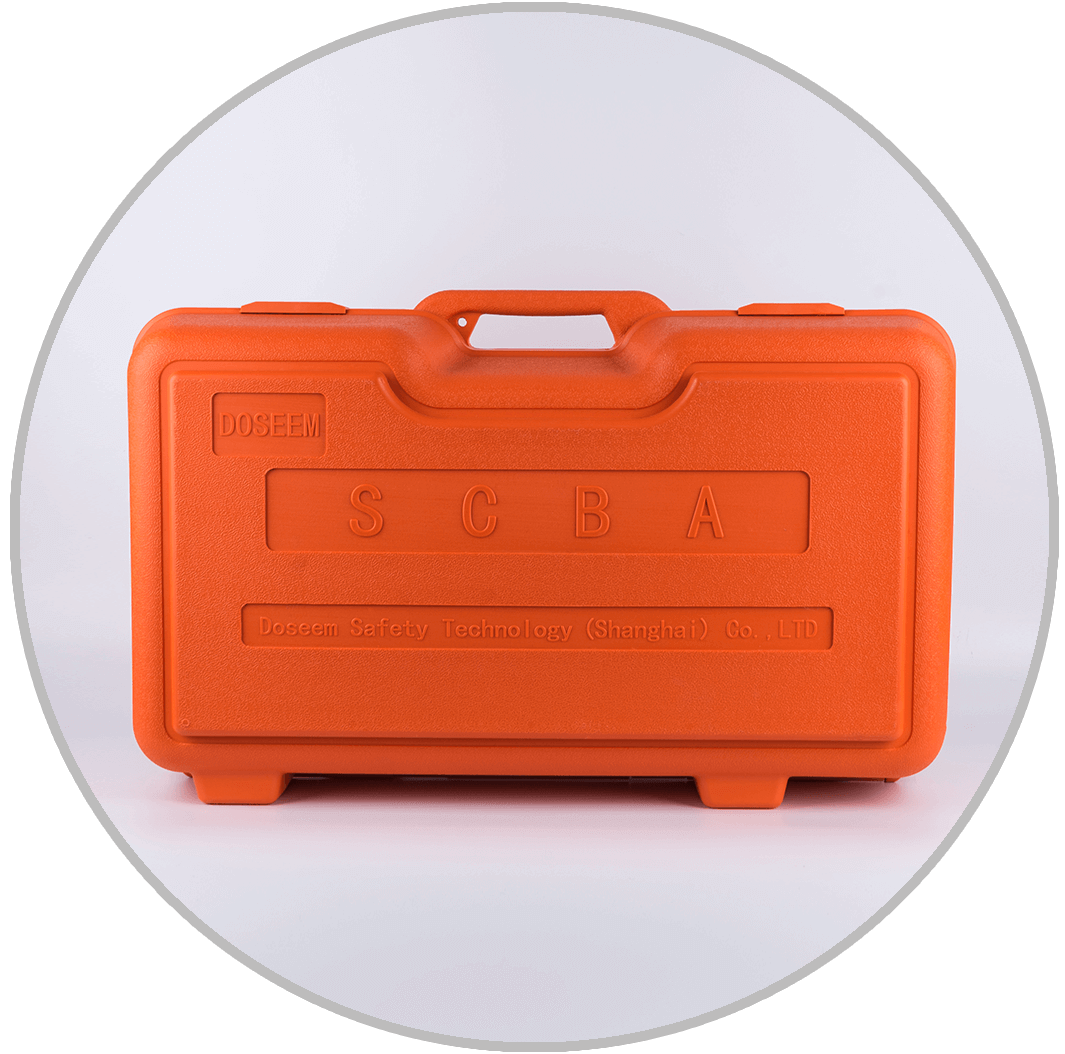

Packing parameters
Inner packaging | Material: PC/ABS | Size: 70cm * 29cm * 43cm |
Outer packing | Material: moisture-proof carton | Size: 71cm * 30cm * 44cm |
